Piston Calibrate pressure gauge Dead Weight Tester with digital lcd
Description Piston Calibrate pressure gauge Dead Weight Tester with digital lcd
Deadweight tester (DWT) is a calibration standard which uses a piston cylinder on which a load is placed to
make an equilibrium with an applied pressure underneath the piston.
Deadweight testers are so called primary standards which means that the pressure measured by a deadweighttester is defined through other quantities; Length, mass and time.
Typically deadweight testers are used in calibration laboratories to calibrate pressure transfer standards like
electronic pressure measuring devices.
Detailed Images Piston Calibrate pressure gauge Dead Weight Tester with digital lcd
Features Piston Calibrate pressure gauge Dead Weight Tester with digital lcd
YS-6 Deadweight Tester. Pressure Range 5.8 - 87psi. Accuracy: 0.015% or 0.020% of reading.
YS-60 Deadweight Tester. Pressure Range 14.5 - 870 psi. Accuracy: 0.015% or 0.020% of reading.
YS600 Deadweight Tester. Pressure Range 145 - 8700 psi. Accuracy: 0.015% or 0.020% of reading
Specification Piston Calibrate pressure gauge Dead Weight Tester with digital lcd
| Model | YS-6 | YS-60 | Piston Calibrate pressure gauge Dead Weight Tester with digital lcd | YS-600 |
| Measure Range | bar | 0.4-6 | 1-60 | 5-250 | 10-600 |
| Accuracy | % | 0.02 or 0.05 |
| Nominal Area of Piston | cm2 | 1 | 0.5 | 0.2 | 0.1 |
| Carrier and Piston | Nominal Mass | kg | 0.4 | 0.5 | 1 | 1 |
| Produced Pressure | bar | 0.4 | 1 | 5 | 10 |
| Supplied Weights | Nominal Mass | kg | 0.10.5 | 0.52.5 | 15 | 15 |
| Produced Pressure | bar | 0.10.5 | 15 | 525 | 1050 |
| Quantity Block | pcs | 610 | 411 | 49 | 411 |
| Pressure Connection | M 20×1.5 |
| Working Medium | Transformer Oil (viscosity 9~12 centistokes at 20i),
or Medical Castor Oil (aciditymg KOH/g) |
| Dimensions | mm | 630×382×593 |
| Weight | kg | 20+5.6 | 26+29.5 | 26+49 | 26+59 |
Applications Piston Calibrate pressure gauge Dead Weight Tester with digital lcd
Typically deadweight testers are used in calibration laboratories to calibrate pressure transfer standards like
electronic pressure measuring devices.

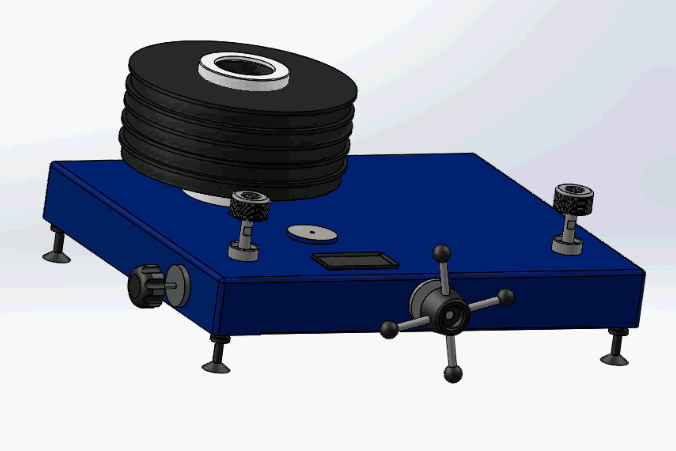

Dynamic picture Piston Calibrate pressure gauge Dead Weight Tester with digital lcd
