Low cost dead weight tester pressure calibrator 0 ~ 60Mpa Accuracy 0.05
Description
Low cost dead weight tester pressure calibrator is a calibration standard which uses a piston cylinder on which
a load is placed to make an equilibrium with an applied pressure underneath the piston.Deadweight testers are
so called primary standards which means that the pressure measured by a deadweighttester is defined through other quantities; Length, mass and time.Typically deadweight testers are used in calibration laboratories to
calibrate pressure transfer standards like electronic pressure measuring devices.

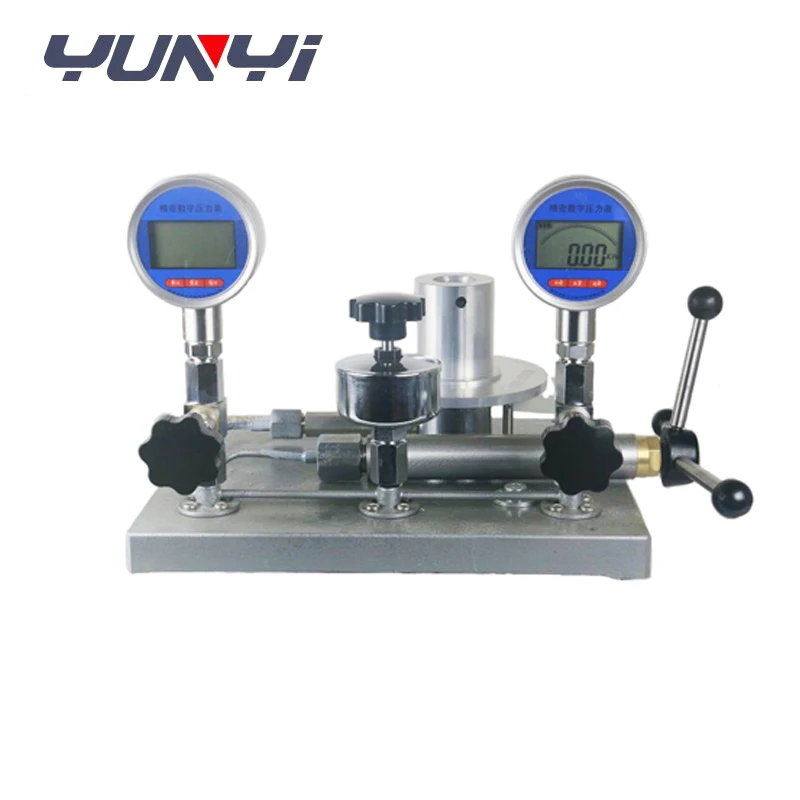

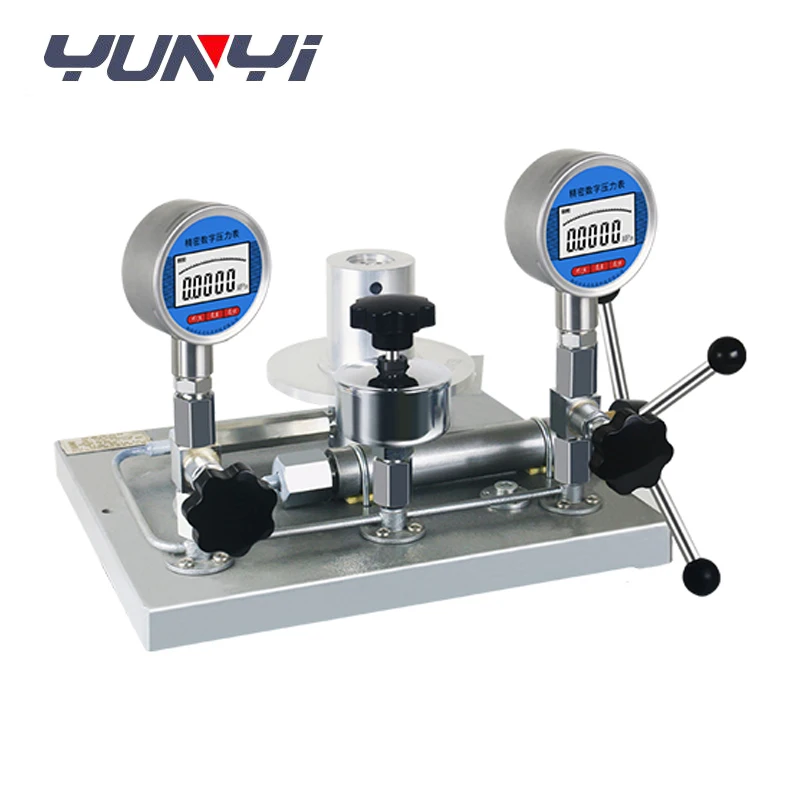

Detailed Images
Specification
| Model | YS-6 | YS-60 | YS-250 | YS-600 |
| Measure Range | bar | 0.04-0.6 | 0.1-6 | 0.5-25 | 1-60 |
| Accuracy | % | 0.02 or 0.05 |
| Nominal Area of Piston | cm2 | 1 | 0.5 | 0.2 | 0.1 |
| Carrier and Piston | Nominal Mass | kg | 0.4 | 0.5 | 1 | 1 |
| Produced Pressure | bar | 0.4 | 1 | 5 | 10 |
| Supplied Weights | Nominal Mass | kg | 0.10.5 | 0.52.5 | 15 | 15 |
| Produced Pressure | bar | 0.10.5 | 15 | 525 | 1050 |
| Quantity Block | pcs | 610 | 411 | 49 | 411 |
| Pressure Connection | M 20×1.5 |
| Working Medium | Transformer Oil (viscosity 9~12 centistokes at 20i),
or Medical Castor Oil (aciditymg KOH/g) |
| Dimensions | mm | 630×382×593 |
| Weight | kg | 20+5.6 | 26+29.5 | 26+49 | 26+59 |
Features
YS-6 Deadweight Tester. Pressure Range 5.8 - 87psi. Accuracy: 0.015% or 0.020% of reading.
YS-60 Deadweight Tester. Pressure Range 14.5 - 870 psi. Accuracy: 0.015% or 0.020% of reading.
YS600 Deadweight Tester. Pressure Range 145 - 8700 psi. Accuracy: 0.015% or 0.020% of reading
